Prepare inventory structures for the group

This tutorial prepares the inventory structure used in the follow-up tutorial for users "Register inventory items". You will create the required projects and collections, register the Chemical and Instrument objects used in the “Material Synthesis” example so that division members can subsequently register Sample objects. To complete this tutorial, you must have the Group Admin role in the Data Store. This role is assigned to Data Store Stewards (DSSts), division leads and their deputies.

What you will learn

Before you begin

This tutorial is designed for openBIS version 20.10.12 and does not require prior knowledge on openBIS. Previous tutorials provide the context for this example.

Tutorial sequence

Tutorial sequence: This tutorial is Step 3 of 5. It follows “Upload data in the Lab Notebook” completed by each user, including DSSts, and prepares the Inventory projects, collections, and objects required by users to implement the tutorial “Register inventory items.”

Key concepts

Inventory in the Data Store

The Inventory sections for the Data Store are FB Inventory and BAM Inventory. By default, objects in the FB Inventory are available to the relevant division. Access can also be granted to collaborators from other divisions at the space or project level. Objects in the BAM Inventory are visible to BAM members with access to the Data Store.

Each division has four FB Inventory spaces: Equipment, Materials, Methods, and Publications. These spaces are named using the division number, for example, X.1 Equipment and X.1 Materials. The BAM Inventory contains institution-wide spaces such as BAM Equipment. Within these spaces, each division has a predefined project, such as X.1 Equipment Open.

Inventory spaces organize tangible and intangible resources used or generated during research—for example, instruments, chemicals, samples, software, and standard operating procedures (SOPs). Note that within the inventory spaces, you find a Space called Publications. The use of this Space is optional and does not replace the purpose of the BAM database Publica to store publications metadata.

What should be registered? Not every inventory item used by a division needs to be registered in the Data Store. Register items whose metadata is needed to understand, trace, or reproduce the resulting research data.

In standardization processes, for example, the calibration date (metadata) of an instrument is required for certification and evaluation. Therefore, instruments used in these workflows need to be registered and linked to experimental steps in the Data Store. These connections are established through user-defined openBIS parent-child relationships.

Division-number placeholder: In this tutorial, X.1 represents your division number. Replace X.1 with the number assigned to your division whenever it appears in a space name, project name, navigation path, table, or Excel file.

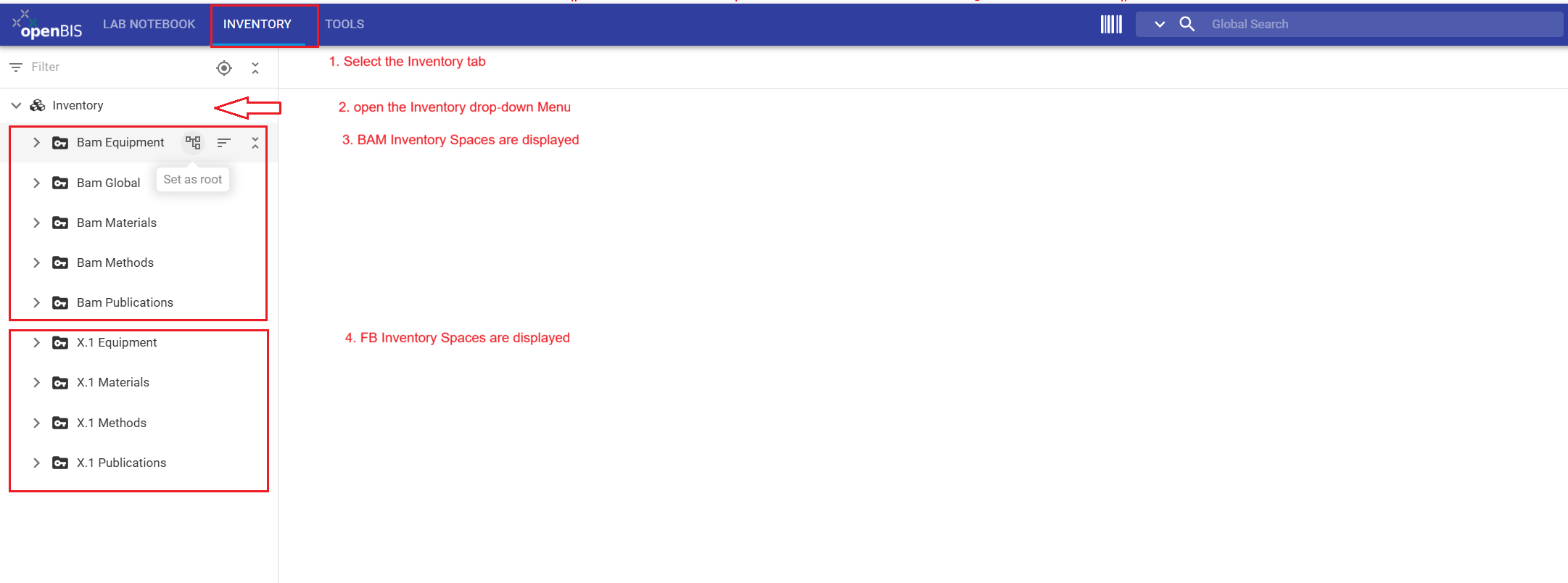

Inventory navigation showing the BAM Inventory and FB Inventory sections
The Data Store contains two Inventory sections: BAM Inventory and the FB Inventory. Select the upper Inventory tab, and use the drop-down menus in the left-hand navigation panel to browse their contents.

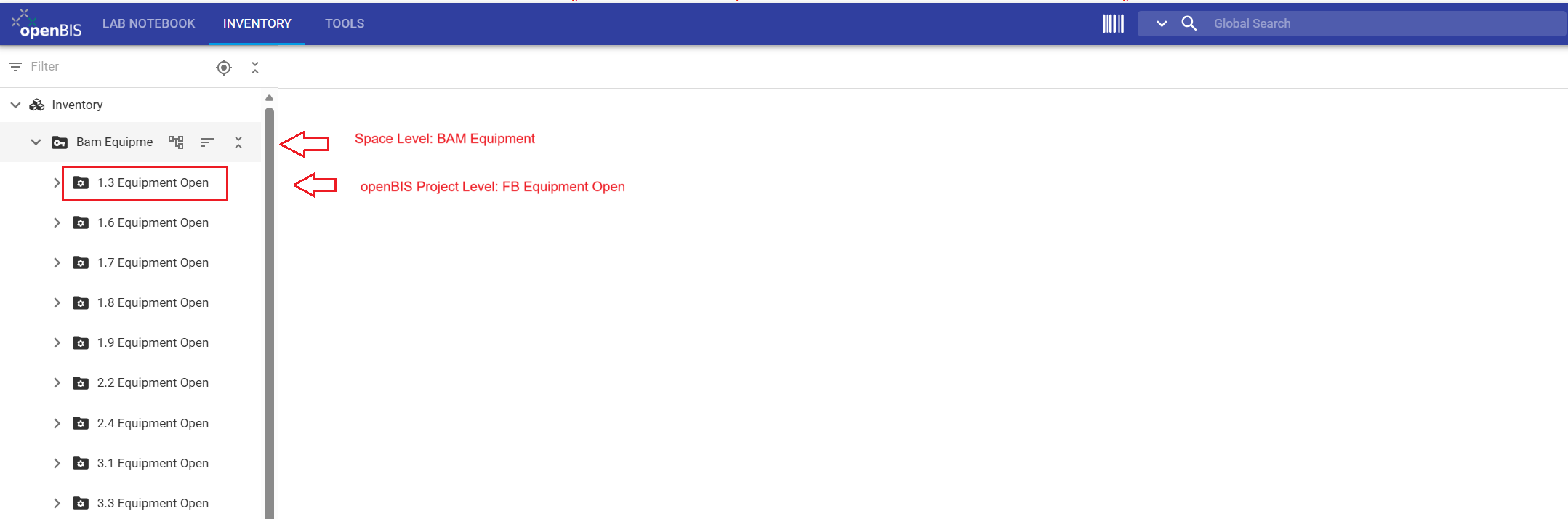

Overview Project in BAM Inventory
The BAM Equipment space contains a predefined project for each division, such as X.1 Equipment Open. Replace X.1 with your division number and use the corresponding project to register large devices and instruments shared by multiple divisions.

Inventory structure for "Material Synthesis"

The “Material Synthesis” example is represented in the Data Store using the hierarchy Space → Project → Collection → Object. Before Users can register and connect inventory items, Data Store Stewards (DSSts) prepare the required Inventory structure.

In this tutorial, you will set up the parts of the data model that are required for the follow-up User tutorial "Register inventory items". This includes creating the division-specific projects and collections in the FB Inventory, preparing the Instruments collection in the BAM Inventory, and registering the Chemical and Instrument objects used in the “Material Synthesis” example.

Data Store data model for the Material Synthesis example, showing the Lab Notebook, BAM Inventory, and FB Inventory and the entities prepared by Data Store Stewards
Data model for the “Material Synthesis” tutorial example. Entities framed in red indicate the Inventory structure and inventory objects prepared by Data Store Stewards for the follow-up User tutorial.
Data Store Steward tasks shown in the figure (FB corresponds to X.1 for the tutorial example):
  • Create the CHEMICALS_SYNTHESIS and SAMPLES_SYNTHESIS projects in X.1 Materials.
  • Create and configure the Chemicals and Samples collections in the FB Inventory.
  • Create and configure the Instruments collection in BAM Equipment → X.1 Equipment Open.
  • Batch-register the Chemical and Instrument objects required for the tutorial example.
  • Prepare project-level access so that Users can continue working with the prepared Inventory structure.

The Samples collection is intentionally prepared without the Sample objects used later in the workflow. In the follow-up user tutorial "Register inventory items", Users review the prepared Inventory structure and register these Sample objects themselves. The registered inventory objects can subsequently be connected with the corresponding experimental steps in the Lab Notebook.

Tutorial workflow

This tutorial guides you through the following steps:

  1. Register projects in FB Inventory
  2. Register collections in both BAM and FB inventories
  3. Register multiple objects using batch registration with Excel files
  4. Manage access rights for collaborators

Step 1: Register projects in FB Inventory

As a Data Store Steward (DSSt), division lead, or deputy, you can create projects CHEMICALS_SYNTHESIS and SAMPLES_SYNTHESIS in the FB Inventory. Other division members do not have sufficient rights to create projects in the FB inventory spaces. In Step 4 of this tutorial, you will learn how to grant access to projects in the FB Inventory to enable them to register and link these inventory objects.

In the following instructions, replace X.1 with your division number.

Instructions for registering a project:
  1. Click the INVENTORY tab in the upper navigation bar
  2. In the left-hand menu, open the Inventory drop-down menu to select your X.1 Materials Space.
  3. Click the + Project button to open the new project form.
  4. Enter the project information using the CODE and Description values provided in the table below.
  5. Review all entries and click Save.
Complete steps 1 to 5 to register CHEMICALS_SYNTHESIS and SAMPLES_SYNTHESIS.

Values for registering projects in FB Inventory

Space name Code Description
X.1 Materials CHEMICALS_SYNTHESIS Chemicals used in the "Material Synthesis" tutorial example. The records are fictional and intended solely for training and demonstration purposes.//Chemikalien aus dem Tutorial Beispiel „Material Synthesis“. Die Einträge sind fiktiv und dienen ausschließlich Schulungs- und Demonstrationszwecken.
X.1 Materials SAMPLES_SYNTHESIS Samples generated in the "Material Synthesis" tutorial example. The records are fictional and intended solely for training and demonstration purposes.//Proben aus dem Tutorial Beispiel "Material Synthesis". Die Einträge sind fiktiv und dienen ausschließlich Schulungs- und Demonstrationszwecken.

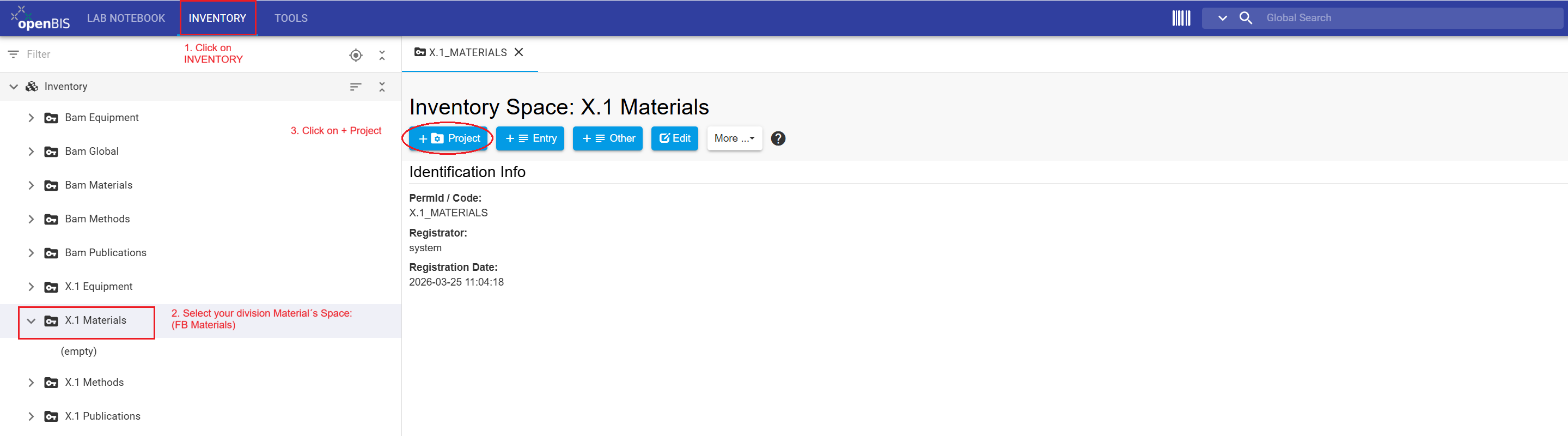

Inventory navigation to register a project
Click on INVENTORY tab. Select the X.1 Materials Space, and press on + Project tab to open the new project form.

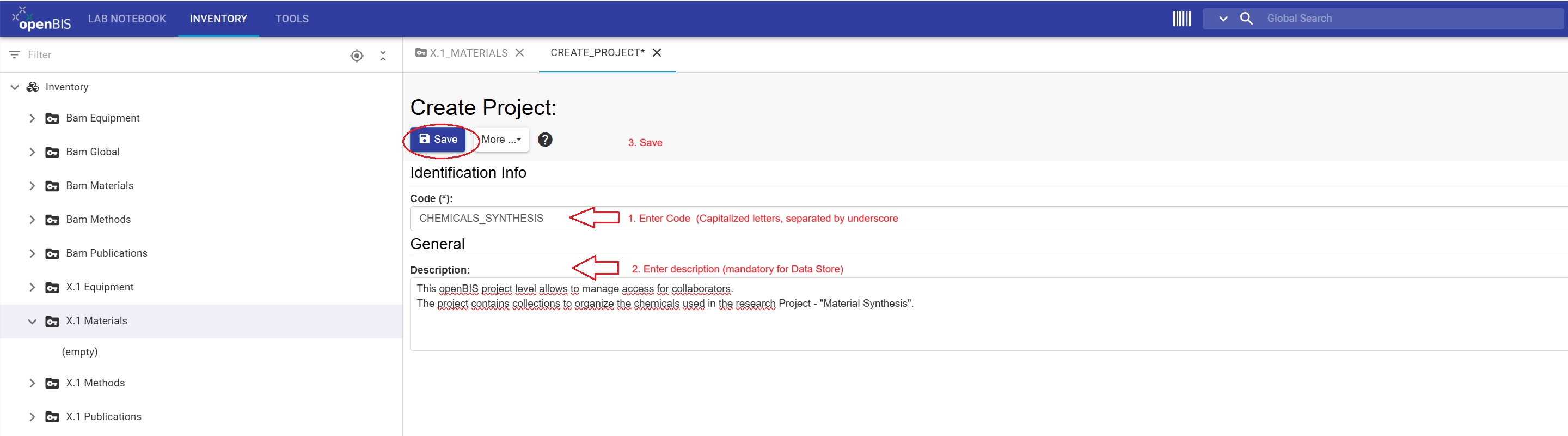

Project form with save option
EnterCODE (*) (mandatory in openBIS) and Description (Mandatory for Data Store). Review the entries and Save.

General information

This section provides guidance for completing the new project form.

Code requirements Description requirements
CODE and Description display: If the CODE and Description fields are not displayed and you encounter a white page, click on the More drop-down menu and select Show Identification Info.
Project CODE is a unique identifier: Once an openBIS project has been saved, its project code cannot be modified or reused within the same openBIS instance.

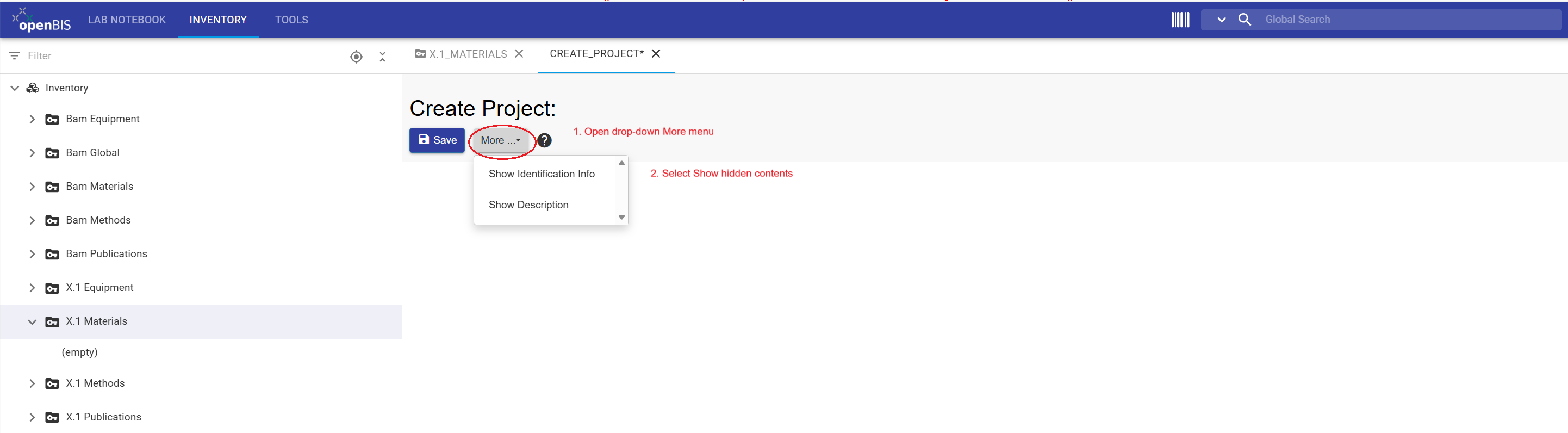

More menu showing the Show Identification Info option
To display CODE and Description , if hidden, click on the More drop-down menu and select Show Identification Info.

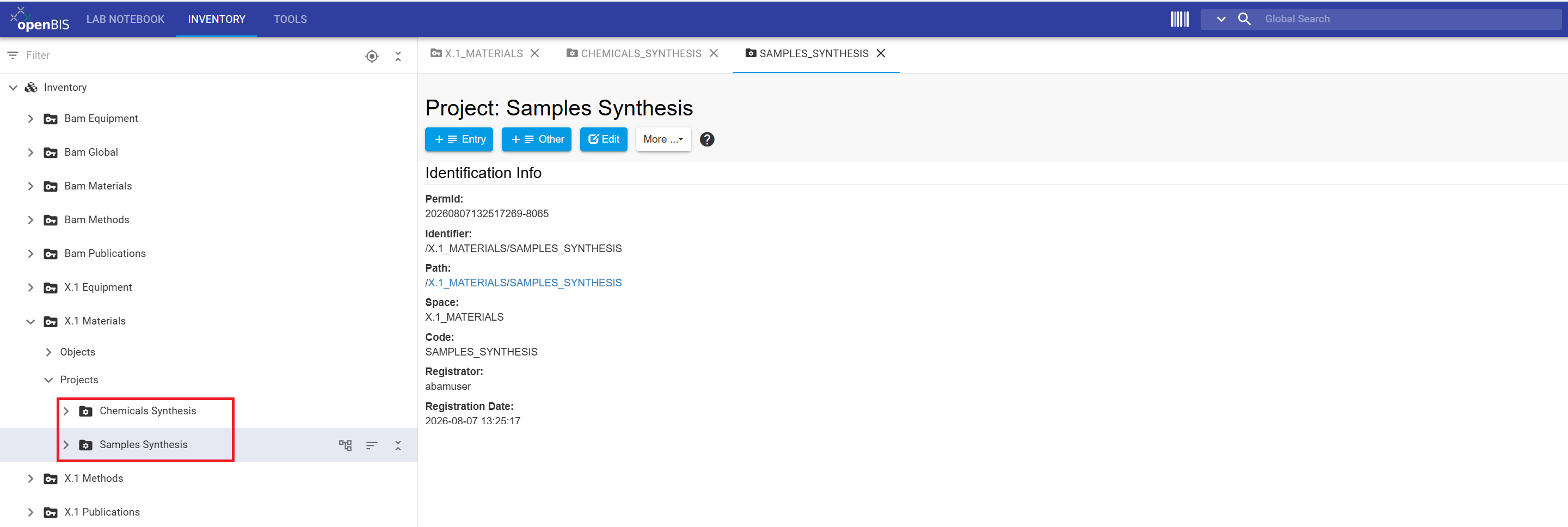

Saved project shown in the inventory Space
The newly registered CHEMICALS_SYNTHESIS and SAMPLES_SYNTHESISprojects are displayed under X.1 Materials in the left-hand navigation menu.
Deleting a project: A project can be deleted only when it is empty. Delete all collections within the project before deleting the project itself. Then select the project in the left-hand navigation menu and choose More → Delete.

Congratulations! You have successfully created two projects within the FB Inventory.

Back to top

Step 2: Register collections in BAM and FB inventories

A project can contain multiple collections for organizing inventory objects of one or more types. Collections provide a logical structure that supports navigation, data management, and data retrieval.

In this tutorial, you will create three collections. The Chemicals and Instruments collections will be used for batch registration in Step 3. Division members will use the Samples collection in the follow-up tutorial, “Register inventory items.”

Instructions for registering a collection:

Use the table Values for registering collections in BAM and FB Inventories to complete the following steps.

  1. In the left-hand main menu, navigate to the corresponding Space.
  2. Select the project
  3. Click the + Other tab
  4. In the drop-down menu, start typing collection and select it
  5. Leave autogenerated Code(*) unchanged
  6. Enter collection Name
  7. Select the Object type, start typing within the Default object type drop-down menu
  8. Select List view as the Default collection view
  9. Review all entries and click Save
Repeat steps 1 to 9 to register a total of three collections: Chemicals, Samples and Instruments.

General information

A collection can be configured with a default object type. When a default object type is defined, the collection provides a direct registration button for that type, for example + Sample, + Chemical, or + Instrument. This allows users to open the corresponding object-registration form directly from the collection.

Values for registering collections in BAM and FB Inventories

Space Name Project Name Collection Name Default Object Type
X.1 Materials CHEMICALS_SYNTHESIS Chemicals Chemical
X.1 Materials SAMPLES_SYNTHESIS Samples Sample
BAM Equipment X.1 Equipment Open Instruments Instrument
Collection registration in FB Inventory
Registered collections are visible in the Inventory menu on the left. Navigate to the X.1 Materials space and open the CHEMICALS_SYNTHESIS and SAMPLES_SYNTHESIS projects to view the Chemicals and Samples collections.

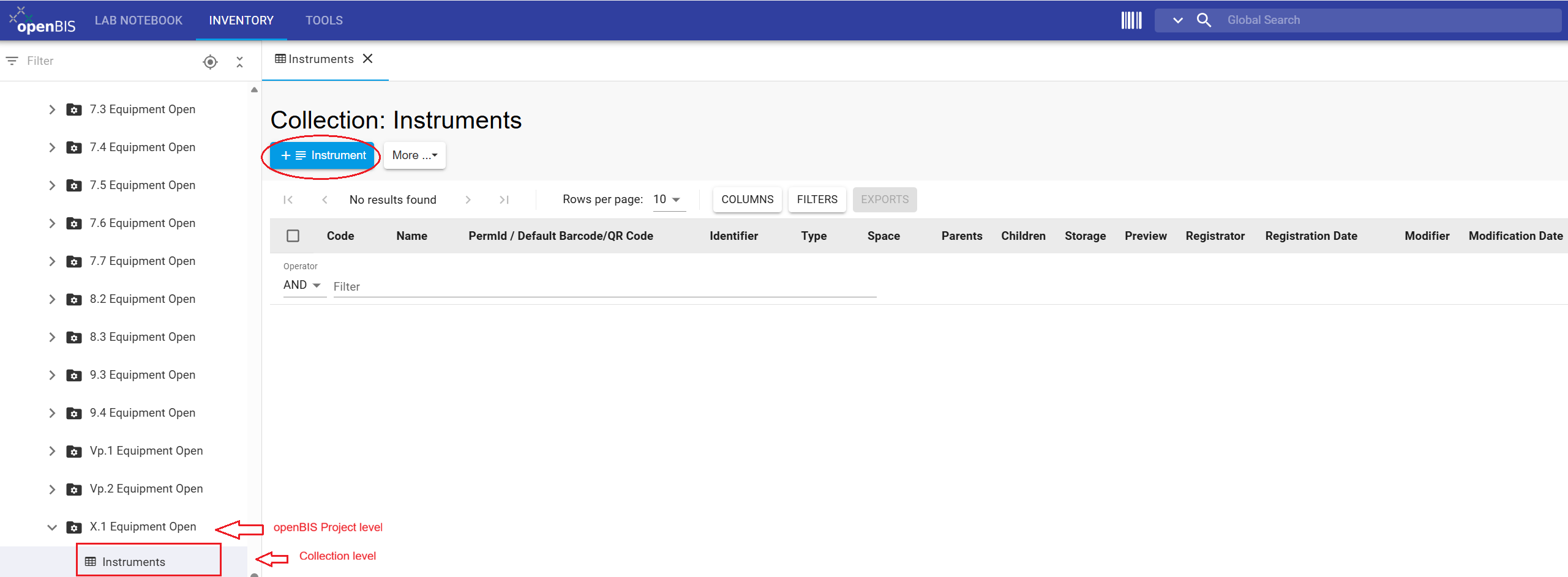

Collection registration in BAM Inventory
The Instruments collection registered in BAM Inventory for your division is displayed in the menu on the left. Navigate to the X.1 Equipment Open project. Note that this collection has a predefined object type and the + Instrument button is available to open directly the Instrument form.

Congratulations! You have successfully created three collections, one in BAM Inventory and two in FB Inventory.

Back to top

Step 3: Batch-register objects

Tangible inventory items, such as instruments and samples, and intangible items, such as standard operating procedures and software, are represented in openBIS as Objects. An object type defines the properties available for a particular category of objects. In this tutorial, we will register objects of the type Chemical in the FB Inventory and Instrument in the BAM Inventory.

Download Excel files

Excel files are needed to batch-register objects as described in step 3. Download the following two Excel files.

Download chemicals.xlsx

Download instruments.xlsx

Instructions to prepare the Excel file for batch registration:
  1. Download instruments.xlsx using the button above.
  2. Open the file and review the instrument objects prepared for the “Material Synthesis” example.
  3. In the BAM Organizational Entity column, replace X.1 with your division number
  4. Check Instrument names.
  5. Do not change the column headings, object type information, or worksheet structure.
  6. Save the modified Excel file under a clear filename, for example instruments_BAM_material_synthesis.xlsx.
Terminology in Excel files:

Because of an unresolved terminology issue in openBIS 20.10.12, generated and exported Excel files use labels that differ from those in the current openBIS user interface:

When completing an Excel file, do not rename the columns. openBIS requires the original column headings for batch registration and batch update.

Instructions for batch-registering objects
    Use table below: Values for batch-registering objects to enter values required for steps 1 to 3.
  1. In the left-hand menu, navigate to the Collection you want to use to register objects.
  2. Open the More drop-down menu and select XLS Batch Register Objects.
  3. In the Register Objects window, click Choose file—shown as Datei auswählen when the browser language is German and select the corresponding Excel file containing the objects to register. Verify that the correct filename is displayed, and then click Accept to start the batch registration.
  4. Return to the Instruments or Chemicals collection and confirm that the new objects are registered.
Repeat steps 1 to 4 to register Chemicals and Instruments with Excel files using batch registration. Note that you have only modified the Excel file for Instruments, while the Excel file for Chemicals will be uploaded as provided here.

Values for batch-registering objects

Space Name Project Name Collection Name Batch registration file
X.1 Materials CHEMICALS_SYNTHESIS Chemicals chemicals.xlsx
BAM Equipment X.1 Equipment Open Instruments instruments.xlsx

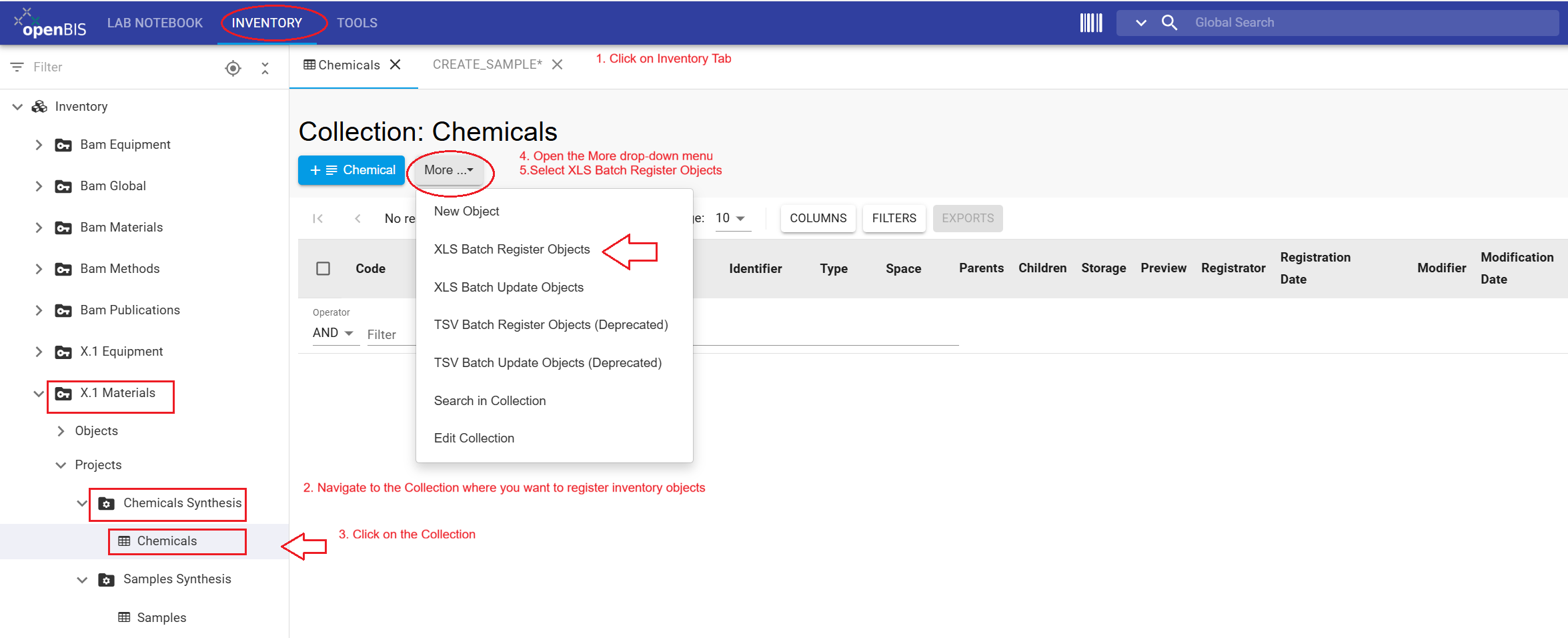

Objects batch registration in FB-inventory
Navigate to X.1 Materials → CHEMICALS_SYNTHESIS → Chemicals. Open the More drop-down menu and choose XLS Batch Register Objects.

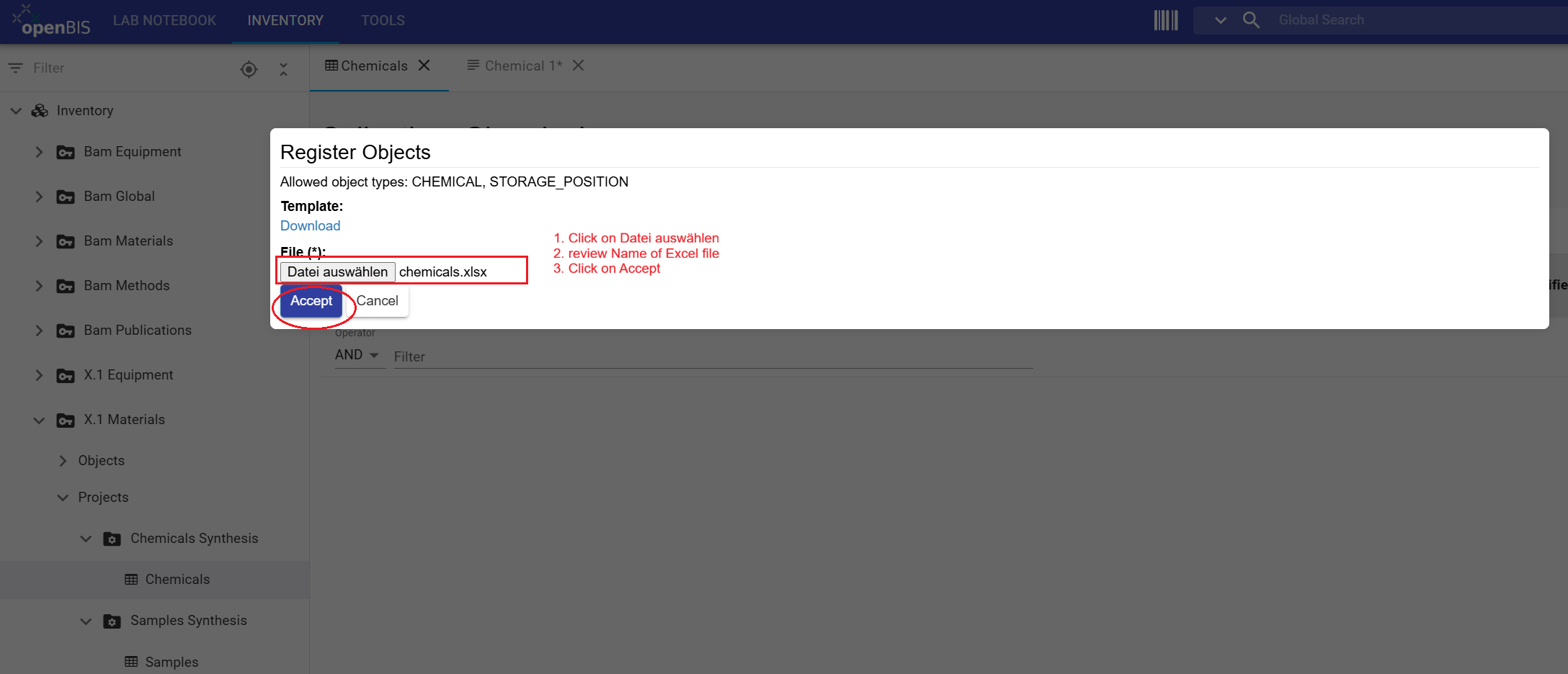

Excel upload for batch-registration
Click Choose file—shown as Datei auswählen when the browser language is German—and select the corresponding Excel file. Verify the filename, and then click Accept to start the batch registration. To create a new batch-registration file, click Download under Template to obtain a blank Excel template for the default object type.

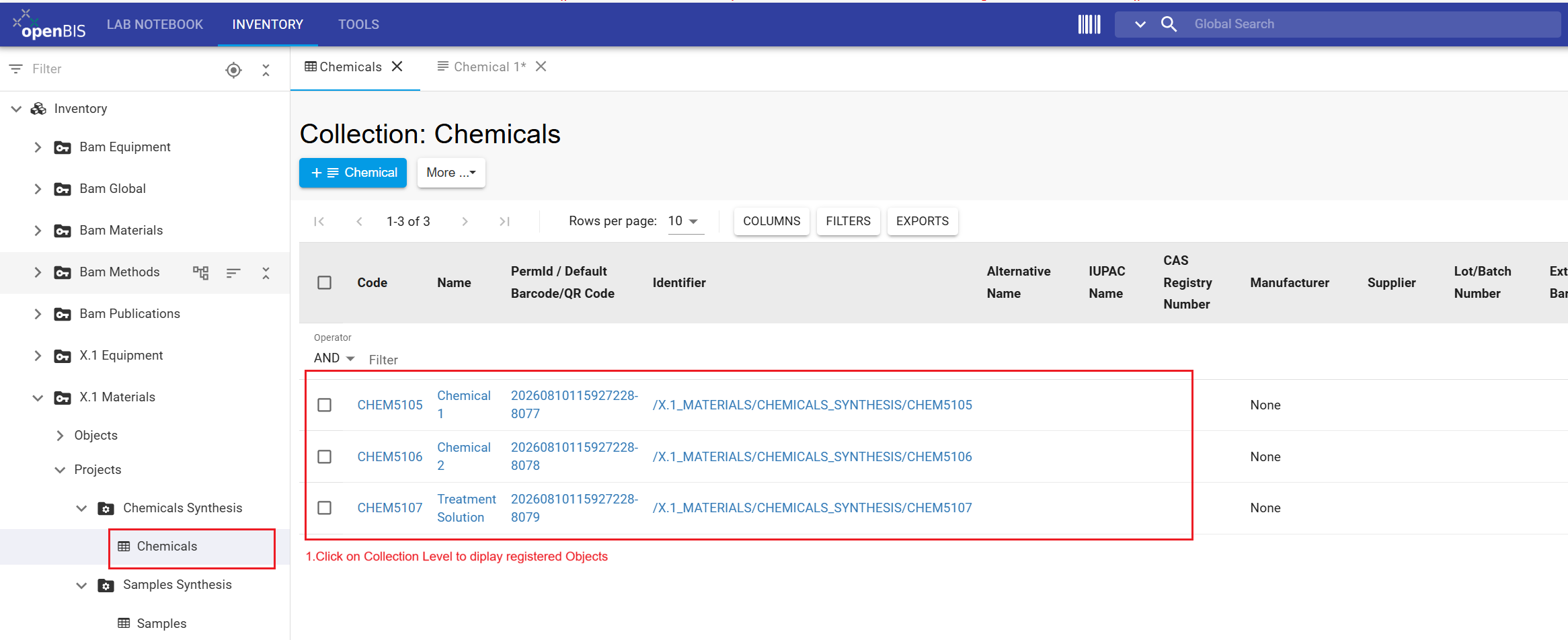

Overview for batch-registration FB Inventory
The registered objects of type Chemical are displayed in FB Inventory.

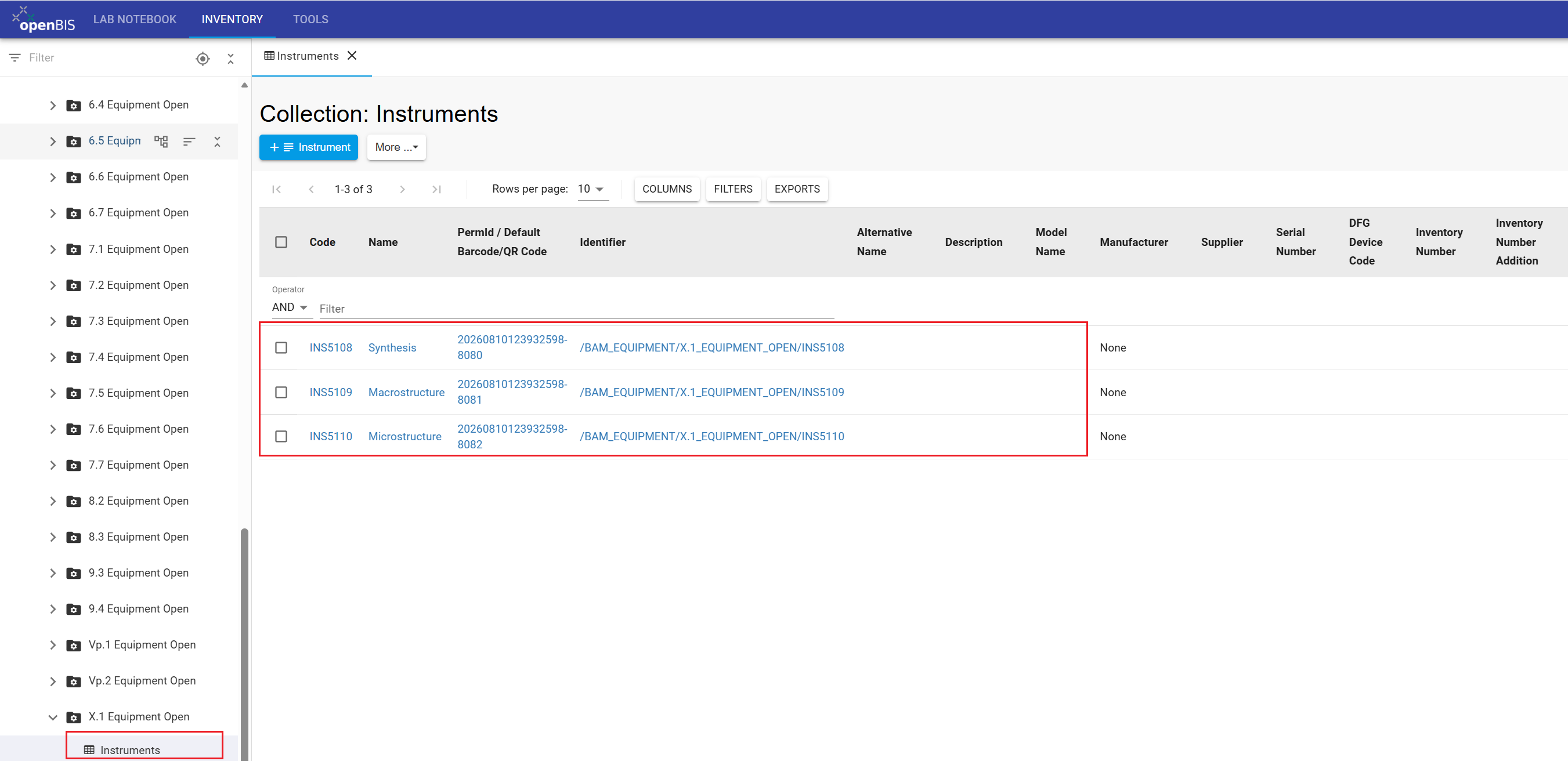

Overview for batch-registration BAM Inventory
The registered objects of type Instrument are displayed in BAM Inventory.

General information

In a separate tutorial, we will use the Batch update functionality to update the metadata of existing Objects. To register a single Object, click the + Chemical or + Instrument button, complete the Object form, and click Save.

Congratulations! You have batch-registered chemicals and instruments in the FB and BAM Inventories respectively, and prepared a Samples collection. All of these inventory items will be used by you and your colleagues in the following tutorial.

Back to top

Step 4: Manage access in FB Inventory

Access to Inventory content in the Data Store depends on the roles assigned at the space and project levels. For detailed information about roles and permissions, see the Roles and Rights concept in the Data Store wiki (accessible only within the BAM network).

FB Inventory

Data Store Stewards (DSSts), division leads, and their deputies can create projects in their division's FB Inventory spaces and manage access to these projects. Division members and collaborators can edit project content when they have been assigned the User role for the corresponding project.

Project-level access can therefore be used to share selected inventory content with collaborators from other divisions. For example, a division can register samples in its FB Inventory and grant access to collaborators from another division who perform measurements on those samples. The DSSts of the division that owns the project remain responsible for managing its access.

BAM Inventory

Inventory items that should be visible across BAM, such as instruments shared by multiple divisions, can be registered in the BAM Inventory. All Data Store members can view objects in BAM Inventory spaces. Members of a division can edit content in their corresponding division-specific project, such as X.1 Equipment Open.

Access management: DSSts can manage project-level access in the FB Inventory. Access to the BAM Inventory is managed centrally. If BAM Inventory permissions need to be added or restricted, contact the Data Store team.
Instructions to grant access to a project in the FB Inventory:
  1. In the left-hand navigation menu, select the relevant project in the FB Inventory.
  2. Open the More drop-down menu and select Manage access.
  3. From the Role drop-down menu, select User.
  4. From the Grant to drop-down menu, select Group to grant access to an entire division, or User to grant access to a specific collaborator.
  5. In the Group or User field, enter the division number if you selected Group, or the BAM username if you selected User.
  6. Verify the selected role and recipient, and click Grant access.
Back to top

Result

After completing this tutorial, you should be able to create projects and collections in the Inventory, configure collections with the appropriate object types, batch-register inventory objects, and manage project-level access in the FB Inventory.

For the “Material Synthesis” example, you have prepared the inventory structure required for the follow-up User tutorial "Register inventory items":

Division members with the User role can now continue with the follow-up tutorial "Register inventory items" to review these inventory items and register the Samples generated during the “Material Synthesis” workflow.

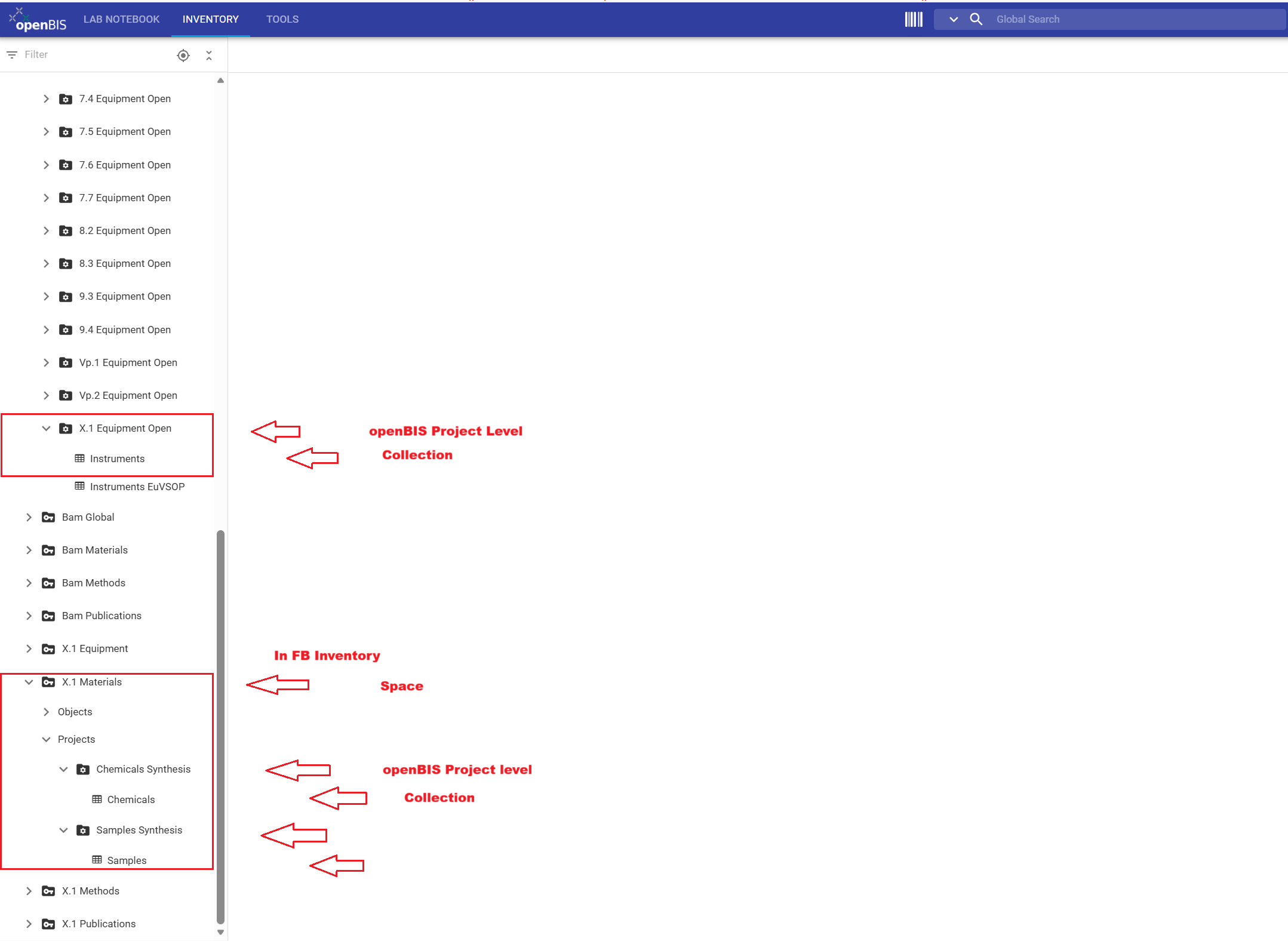

Overview Collections in BAM and FB Inventory
The Inventory structure prepared in this tutorial. In the BAM Inventory, the BAM Equipment → X.1 Equipment Open → Instruments collection contains the registered Instrument objects. In the FB Inventory, X.1 Materials → CHEMICALS_SYNTHESIS → Chemicals contains the registered Chemical objects, while X.1 Materials → SAMPLES_SYNTHESIS → Samples is prepared for Users to register Sample objects in the follow-up tutorial.
